Detailed screen

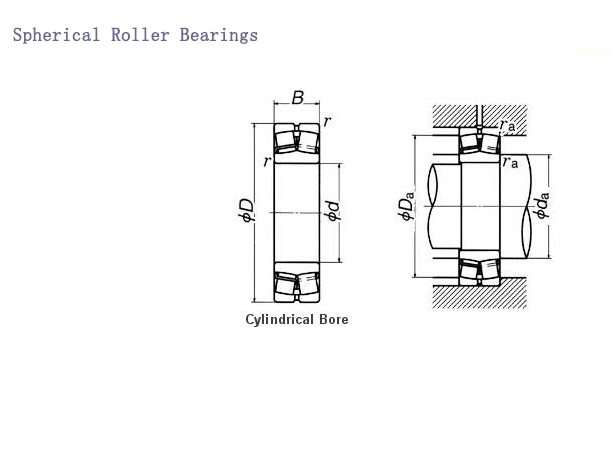

Spherical Roller Bearings
NSK 22220EAE4
| Bearing number | Boundary Dimensions (mm) | Basic Load Ratings (N) | Limiting Speeds (rpm) | Abutment and Fillet Dimensions (mm) | Constant | Axial Factor | Mass |
|---|
| d | D | B | r | Cr | Cor | Grease | Oil | da(min) | da(max) | Da(max) | Da(min) | ra | e | Y2 | Y3 | Y0 | (kg) |
|---|
| 22220EAE4 | 100 | 180 | 46 | 2.1 | 455000 | 490000 | 2800 | 3600 | 112 | 119 | 168 | 160 | 2 | 0.24 | 4.3 | 2.9 | 2.8 | 4.84 |
广州瑞孚源供应日本NSK调心滚子轴承、导轨、油脂等！
如需其他产品请致电：020-86389060/ 86389070 技术支持：18026290373
我们将竭诚为您服务。
瑞孚源推荐NSK轴承：
22210EAE4 22211EAE4 22212EAE4 22213EAE4 22214EAE4 22215EAE4 22216EAE4 22217EAE4
22210EAKE4 22211EAKE4 22212EAKE4 22213EAKE4 22214EAKE4 22215EAKE4 22216EAKE4 22217EAKE4
22218EAE4 22219EAE4 22220EAE4 22222EAE4 22224EAE4 22226EAE4 22228CDE4 22230CDE4
22218EAKE4 22219EAKE4 22220EAKE4 22222EAKE4 22224EAKE4 22226EAKE4 22228CDKE4 22230CDKE4
